The Sonnet Custom Studio combines elegance, tone and features taylored for the classic blues and rock guitar player. The highly figured Quilt Maple top and the Alder body set the base for a tight, compact & responsive tone. The 510TS SF2 Chrome tremolo generates vintage tremolo tones with a modern handling.
The extra push-push Switch on the tone-pot will split your humbucker for more transparent & crisp bridge pickup sounds. The Lollar High Wind Humbucker pickup and the Special S Single coils give enough versatility to reach from blues to rock .
As every other Magneto guitar, The Sonnet Custom Studio is entirely handmade by master luthiers with full attention to detail and great intonation.
SONNET CUSTOM STUDIO Specification Sheet
BODY
Body Wood: American Alder, 2-Piece
Top: Highly Figured Quilted Maple
Finish: Nitrocellulose Lacquer Finish
Pickguard: Pearl
NECK
Neck Wood: Hard Rock Maple
Finish: Satin Nitrocellulose
Fingerboard: East Indian Rosewood
Scale length: 648mm / 25 ½”
Nut Material: Oiled Bone
Nut Width: 42 mm / 1.650”
Frets: .096” X .047” Narrow Jumbo Style Frets (6105 Style)
Nr.of Frets: 22 frets
Neck Profile: Medium C Shape,
Radius: 11” / 280mm Radius
Neck Heel: Tapered
Truss Rod: Single Truss Rod
Truss Rod Nut: “Quick-Set” System
HARDWARE
Bridge: Gotoh 510TS-FS2 Custom Vintage Style Tremolo with Steel Plate Saddles and
Steel Block, 10.8 mm String Pitch

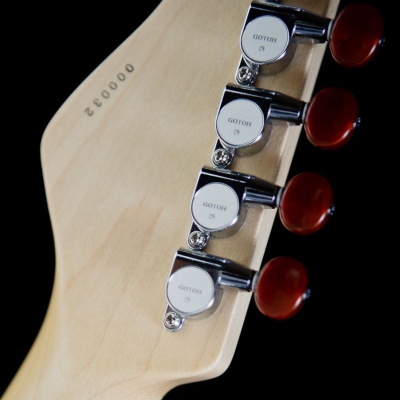

Tuners: SG-360-05P2, Gear Ratio 14:1, Made by Gotoh
String Retainer: “The Cylinder” Low Friction String Guide, Made by Gotoh
Hardware Finish: Chrome
ELECTRONIC PARTS
Pickups: Lollar Special S Single Coils, Lollar High Wind Imperial Humbucker
Pickup Switch: CRL 5 Position Switch
Switching: Standard 5 way, Push-Push Tone Pot Splits Humbucker Pickup.
Controls: 1 Master Volume, 1 Master Tone (Push-Push)
Pots: CTS Audio Taper Pots
Output Jack: Switchcraft Mono Jack
STRINGS: 010-046
CASE: Magneto “Mag-Lite” Case
ACCESSORIES: Tremolo Arm
Allen Wrench Trem Set
Neck Adjustment Pin
Colors Available: TBR= Tiger Brown, EE= Emerald Eyes
